BIWALL 40

Acoustic and thermal insulation for double walls

The soundproofing and thermoacoustic insulation panel made of polyester fiber and rubber granules

The high values of acoustic and thermal insulation, the extreme resistance to moisture and condensation combined with the ease of installation are the main characteristics of the Biwall 40 panel.

The fibers and rubber granules obtained from recycling of EOL tires and EPDM (Ethylene Propylene Diene Monomer) of which the 40 mm thick panel is composed are anchored to a tear-resistant fabric backing and hot-pressed with a 10 mm thick polyurethane adhesive with a density of 800 kg/m³.

The panel dimensions are 1.20 m in length, 1 m in width.

Biwall 40 can be applied to cavity walls in brickwork.

The accessories available for this insulation are:
⦁   Stywall AD Pro, high-density strip under the wall, made with a tear-resistant roll backing, composed of rubber granules obtained from recycling of EOL tires
⦁   Stywall S, high-density strip under the wall, made in roll form with rubber granules obtained from recycling of EOL tires
⦁   Colla Perlfix K465
⦁   Colla Selena Tytan 60s
⦁   Stik HD, tape with enhanced adhesion, characterized by superior resistance to aging and weathering agents
⦁   Fixing elements
⦁   Redfix L, C and U, anti-vibration connections for walls and ceilings

GALLERY

DOCUMENTS

Building-Catalog

PDF

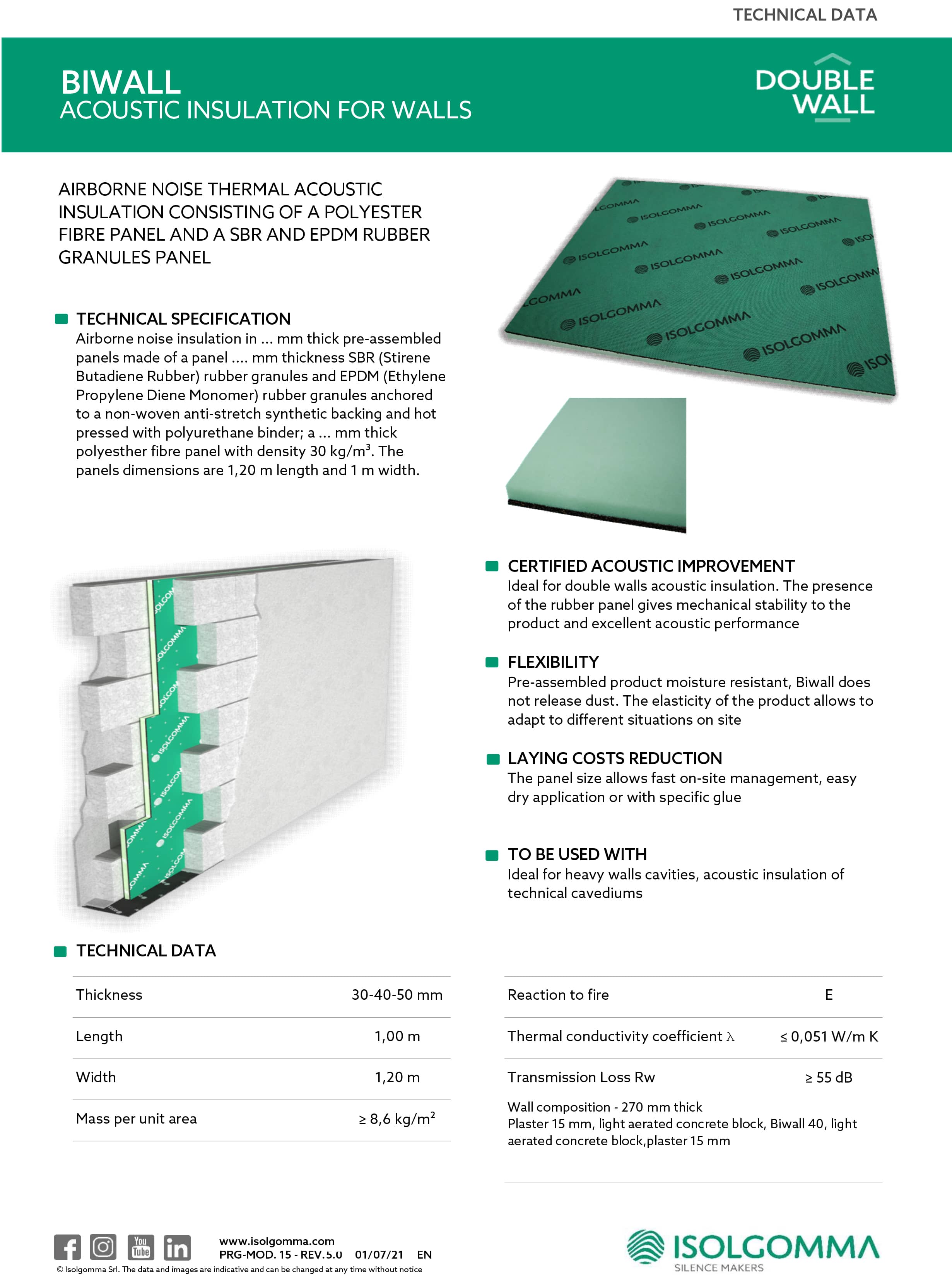

BIWALL-Data sheet

PDF

Isolgomma

Via dell’Artigianato 24 36020 Albettone (VI) Italy

[email protected]

+39 0444 790781 https://www.isolgomma.it/

Isolgomma, an Italian company with over 50 years of experience, produces and markets recycled rubber vibration and sound-absorbing products for civil and industrial construction. From acoustic insulation products to vibration control solutions, Isolgomma offers high-quality and sustainable solutions.

The UNI EN ISO certifications attest to the company's commitment to quality and the environment. With projects such as the Hilton hotel in Baku and the Cayan Tower in Dubai, Isolgomma proves to be a reliable global partner.
