POINT

Soundproofing for floating floors

The shaped acoustic panel with rubber granules obtained from recycled ELTs with high mechanical performance

High acoustic performance, capable of ensuring stability over time for high loads up to 5000 kg/m² are the main characteristics of Point.

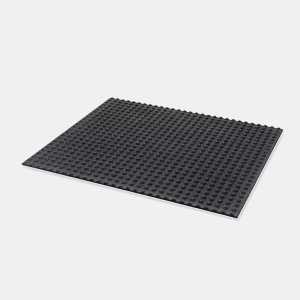

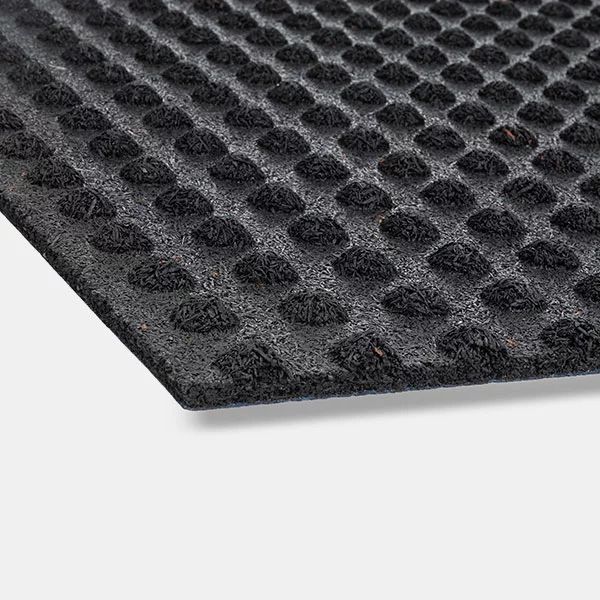

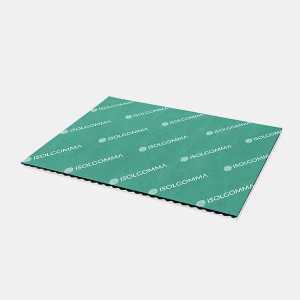

The panels of the acoustic insulator with high mechanical performance have a shaped surface with a total thickness of 18mm. The panel is composed of rubber fibers obtained from recycled ELTs agglomerated hot with polyurethane adhesive coupled with a non-woven tear-resistant polyethylene fabric in blue color on the upper side.

The panel dimensions are 1 m in width and 1.2 m in height, with a total surface mass of 6.7 kg/m². The dynamic stiffness is 16 MN/m³, the impact sound insulation 28 dB.

The accessories serving this insulator are:
⦁   Profyle, shaped decoupling and adhesive component, made of polyethylene.
⦁   Profyle Flat, vertical decoupling component made of adhesive polyethylene.
⦁   Stik HD, tape with enhanced adhesion, characterized by superior resistance to aging and weathering.

GALLERY

DOCUMENTS

Building-Catalog

PDF

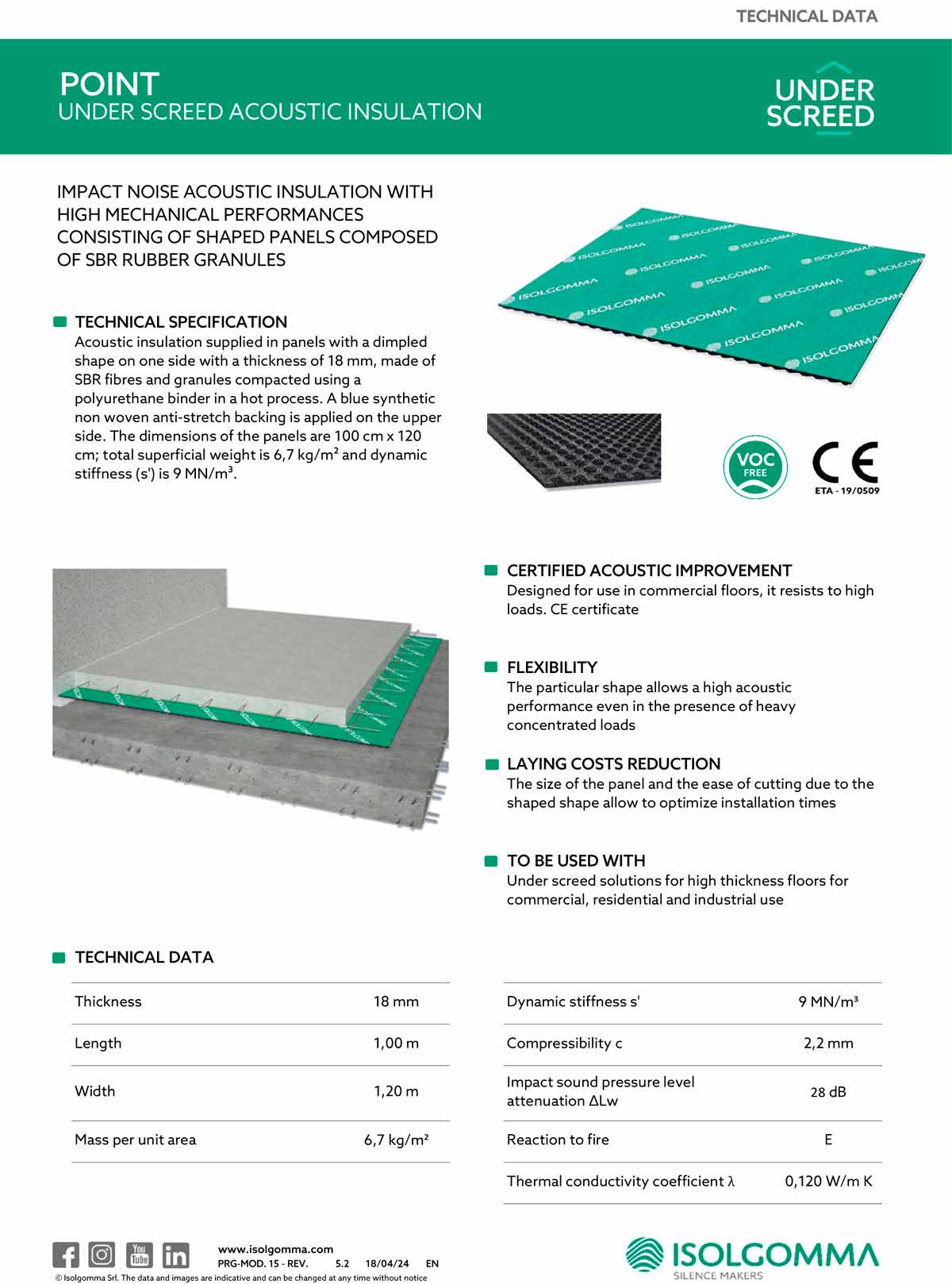

POINT-Data Sheet

PDF

Isolgomma

Via dell’Artigianato 24 36020 Albettone (VI) Italy

[email protected]

+39 0444 790781 https://www.isolgomma.it/

Isolgomma, an Italian company with over 50 years of experience, produces and markets recycled rubber vibration and sound-absorbing products for civil and industrial construction. From acoustic insulation products to vibration control solutions, Isolgomma offers high-quality and sustainable solutions.

The UNI EN ISO certifications attest to the company's commitment to quality and the environment. With projects such as the Hilton hotel in Baku and the Cayan Tower in Dubai, Isolgomma proves to be a reliable global partner.
