PBO-MESH 105

FRCM with PBO fiber 105 g/m2 and inorganic matrix Structural Reinforcement Line

PBO-MESH 105

FRCM reinforcement system for composite concrete consisting of a unidirectional PBO mesh with a weight of 105 g/m² and inorganic matrix MX-PBO Concrete

FRCM reinforcement system for composite concrete consisting of a unidirectional PBO mesh with a weight of 105 g/m² and inorganic matrix MX-PBO Concrete

Thanks to the high weight of the PBO mesh and the high-performance inorganic matrix, the FRCM system is suitable for the most demanding applications on concrete structures and in small sections such as floor beams.

SYSTEM COMPONENTS:

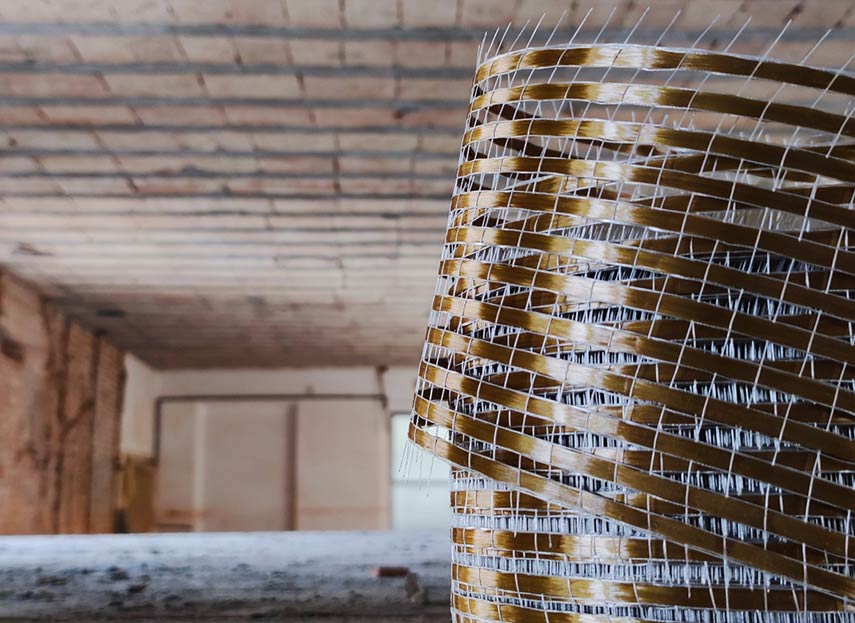

Unidirectional mesh with 105 g/m² in PBO fiber, presence of thermoplastic glass fiber in the transverse direction to that of the PBO fibers.

Available in:

H 10 cm, 30 m coil
H 25 cm, 15 m coil
H 20 cm, 15 m coil
H 50 cm, 15 m coil

MX-PBO Concrete

Inorganic fiber-reinforced cement-based matrix specific for the use of the PBO-MESH 105 on concrete structures. Ideal for optimal transfer of stresses from the structural element to the reinforcement mesh.

SYSTEM PROPERTIES

Increased flexural capacity of reinforced concrete beams.
Increased flexural capacity of reinforced concrete columns under axial load.
Increased shear capacity of beams, columns, beam-column joints, and walls in reinforced concrete.
Increased strength in the end regions of reinforced concrete beams and columns.
Increased ductility of one-dimensional elements such as beams and columns in reinforced concrete.
System resistant to high temperatures and freeze-thaw cycles.
Inorganic matrix with significant adhesive capacity to concrete substrate.
Simplicity and reliability of laying the inorganic matrix, which is applied like a traditional pre-mixed cementitious mortar in a bag.
System applicable even on damp substrates without the need for special protections.
Easy installation and handling of the mesh.

APPLICATION FIELDS

Upgrading and improving the static and seismic behavior of reinforced concrete buildings.
Upgrading and improving the static and seismic behavior of reinforced concrete infrastructures.
Flexural strengthening of reinforced concrete beams.
Axial load strengthening of reinforced concrete columns.
Shear strengthening of beams, columns, beam-column joints, and walls in reinforced concrete.
Confinement of reinforced concrete columns.
