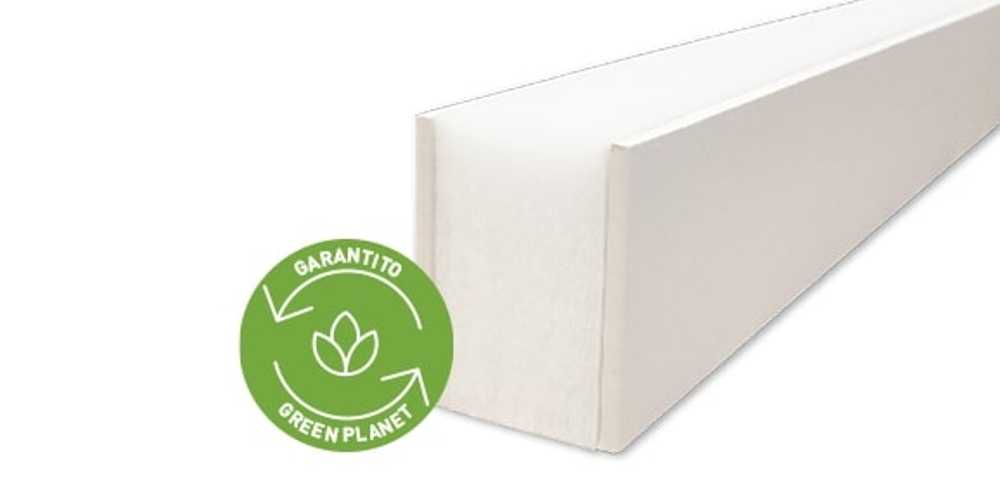

The product is made with a sandwich structure consisting of two 12.5 mm plasterboard sheets with an 80 mm IsolFIBTEC FLC panel (recycled and thermobonded polyester fiber) sandwiched in between.
Isolmant Acoustic Fiber CG Partition
Isolmant Acoustic Fiber CG is a vertical element for completing mobile or plasterboard partitions. This element should be positioned in the air plenum between the wall itself and the underside of the upper floor slab (in the presence of raised floors) or between the wall and the underside of the upper floor slab (in the presence of false ceilings).
Function and Benefits
The installation is designed to reduce insulation losses related to the formation of acoustic bridges. These losses are estimated to be around 10 dB at the upper or lower vertical joints of the aforementioned construction elements.
Advantages
• Usable in both renovations and new constructions;
• High acoustic insulation against airborne noise;
• High thermal insulation;
• Low thermal conductivity;
• Unalterable over time;
• Unlimited lifespan;
• Easy to install;
• Variable height, upon request, to adapt to every construction site need.
